Built for Performance. Engineered to Dominate.

Looking to unleash the full potential of your late-model Mustang or Ford-powered street machine? The TREMEC Magnum XL 6-Speed Close Ratio Transmission (TUET11430) delivers unmatched strength, precision, and high-performance shifting—all in a purpose-built package engineered to replace the factory 5 or 6-speed transmission.

Born from the legendary Magnum 6-speed family and introduced in 2012, the Magnum XL retains everything enthusiasts love—brute strength, buttery-smooth gear engagement, and refined drivability—while solving fitment and functionality challenges faced by serious builders. This is transmission-only, designed for those who want the best and know exactly what they’re doing.

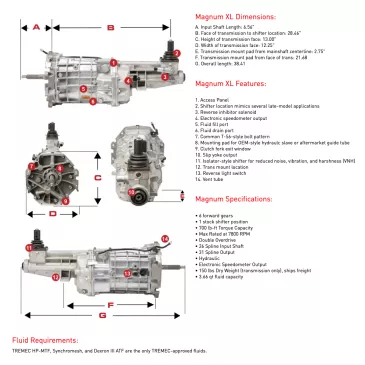

Key Features & Specs:

• Make: Ford (Ideal for 2005-2018 S197 Mustang & other custom builds)
• Transmission Only – Choose Tremec’s full S197 conversion kit (TUKT12019 or TUKT12021) for a complete solution
• 6 Close-Ratio Gears for Maximum Performance
• Gear Ratios:
  • 1st: 2.66
  • 2nd: 1.78
  • 3rd: 1.30
  • 4th: 1.00
  • 5th: 0.74
  • 6th: 0.50 (Highway-friendly overdrive)
• 26-Spline Input / 31-Spline Output Shafts
• Shifter Location: 34.9 inches from bellhousing face
• Mount Position: 28.1 inches
• Electronic Speedometer Output
• No Bellhousing Included

Why Choose the Magnum XL TUET11430?

Whether you're carving corners on the track or tearing up the streets, the Magnum XL is built to take abuse. The extended-length tail housing eliminates the need for semi-remote shifter setups—delivering a more direct, crisp shift feel. Its robust internals are designed for high-horsepower applications, making it the go-to choice for serious Mustang builders and Ford performance enthusiasts.

Compatible with a variety of custom builds and perfect for replacing weak factory gearboxes, this is the ultimate upgrade for anyone seeking a bulletproof drivetrain.

Built Tough. Shifts Smooth. Ready to Rip.

Don't settle for less when you're pushing for more. The TREMEC Magnum XL TUET11430 gives you the durability of a race-ready gearbox with the refinement of a daily driver. Backed by TREMEC's legendary engineering, it’s your ticket to next-level performance.

Note: This is transmission-only. For full conversion kits, see TUKT12019 or TUKT12021.

Perfect for: S197 Mustangs (2005-2018), Restomods, Track Builds & Custom Ford Projects



This Product Ships Freight

When you add this product to your cart and go to purchase, you'll get this message: "Your order will be shipped via pallet. An estimate will be provided to you and added to your bill once approved.". If you continue through the purchase process, an order will be sent to SST, but your payment will not be collected. Upon receiving your order, SST will email you an estimate to ship to your address. At that point, you can decide to finalize the purchase, or you can choose to decline.
